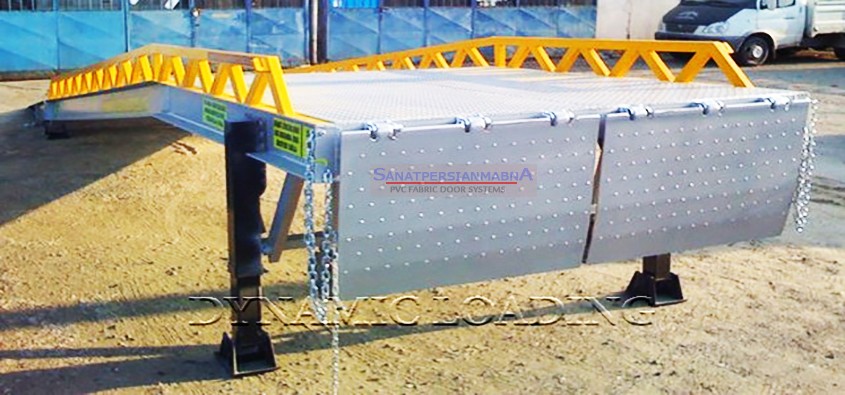

Persian Sanat Mabna mobile ramp

The ramp system can be designed telescopically up to 1500 mm. It depends on your needs. It's our job to solve your loading problem. You can imagine that we can dream and produce.

Specially designed lip and hydraulic system prevents any damage and safety loading in the supply. Hose blast valves provide greater safety to save the person and the ramp system. High reinforced steel sheets are used without welding up to 3000 mm. Providing a strong system is very important. The safety valve has blocked the stiffening.

Movable ramp specifications:

Ability to load 8000 to 25000 kg

The standard height level function of this device can be adjusted from 1 meter to 1.65 meters. Of course, it can be changed according to the employer's wishes.

The movable ramp has a very durable epoxy coating.

Two pieces of 700 mm sheet are installed in a hinged way on the front edge for more safety and with moving function for moving up and down.

The ramp has two connection straps for easy carrying as a tow or tow.

The moving ramp only needs one operator.

It can be easily used manually by the designed jack.

The front and rear movable edge can be used as a manual hydraulic pump jack.

The main part of the ramp is made of strong galvanized mesh to prevent the vehicle wheels from slipping and slipping.

Rear slope and movable ramp fittings are reinforced with NPI steel and very strong hinges.

The rear folding part of the ramp is reinforced with galvanized mesh floor and NPU steel.

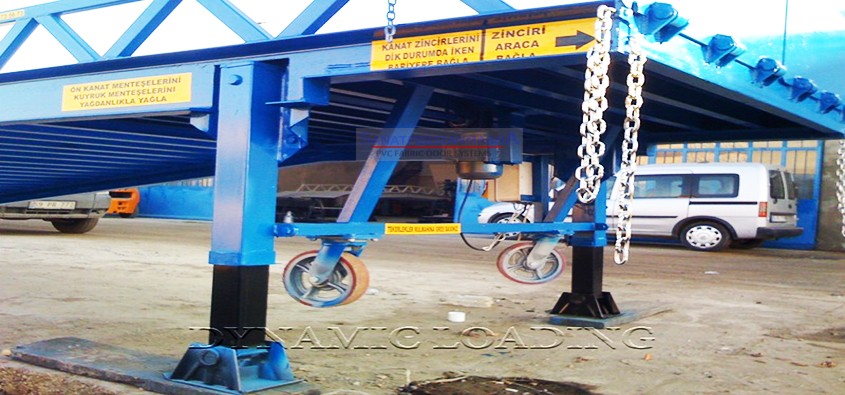

The movable ramp has 2 wheels with a load bearing capacity of 3000 kg each and is anti-wear with polyamide material for easy carrying.

The total length of the movable ramp is 10.15 meters and 2.40 meters, the width is 7.5 meters and the width is 2.10 meters.

 Our systems are robust and can be changed and used a lot. These systems are strong and stable, articulated and sequential and in proportion to the daily needs of factories, warehouses and users.
